Allocation of Enhanced Serviced Sites to Beneficiaries

The first enhanced serviced sites are being handed over to beneficiaries in the Mossel Bay UISP programme in the Transand Camp informal settlement.  The Transand Camp informal Settlement is being transformed into a proper formal neighbourhood and can no longer be regarded as an “informal settlement”. The Enhanced Serviced Sites that are being developed as part of the Mossel Bay UISP consist of full A-grade serviced sites with a toilet structure with a flushable toilet, an outside wash trough and an inside washbasin and tap. A grade services translate to paved roads, underground water and sewerage connected to the municipal grid, and proper stormwater drainage. Each erf has a level compacted platform ready for a top structure to be built on and in areas with slopes, retaining walls are used to create a level platform. In addition to this, each stand is provided with an electrical connection and pre-paid electricity meter that is rolled out through the electrification programme funded by the Department of Mineral Resources and Energy.

Beneficiaries break down their structures and are then relocated onto a serviced site where they then rebuild their structure using the building materials of their old structure together with additional building material that is provided by the municipality to assist beneficiaries.  The building material assistance package provided by the municipality consists of the following:

  • 4 3m long poles (100mm dia x 3m),
  • 7 3m long purlins (76x50mm x 3m),
  • 6 3m long rafters (114 x 38mm x 3m)
  • 1 3m x 15m DPC underlay (250 micron)
  • 500g 75mm galvanised nails
  • 500g 100mm galvanised nails
  • 7 3m long galvanised roof sheets (0.47mm thick x 610mm x 3m)
  • 1kg 65mm safetop screws
  • 1 cube Floor infill material (G7)

Construction of the new structures are progressing well in the areas where stands have already been allocated to beneficiaries.  In some cases the toilet structure is used as an anchor and incorporated into the new structure to essentially have an “inside” toilet. In other cases the beneficiaries prefer to keep the structure separate and keep the toilet “outside”.

The photos below show the completed enhanced serviced sites and the new structures that are being erected:

Completed Enhanced Serviced Sites

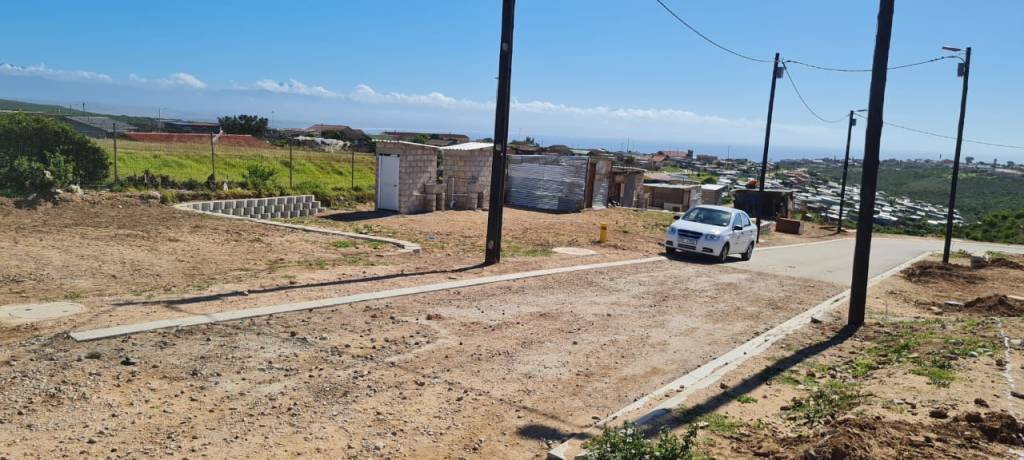

Completed Enhanced Serviced Sites with paved roads and proper infrastructure including electrical connections to each stand
Newly Constructed paved access road providing safe access to the settlement
Level compacted Platforms are created where beneficiaries can then build a top structure

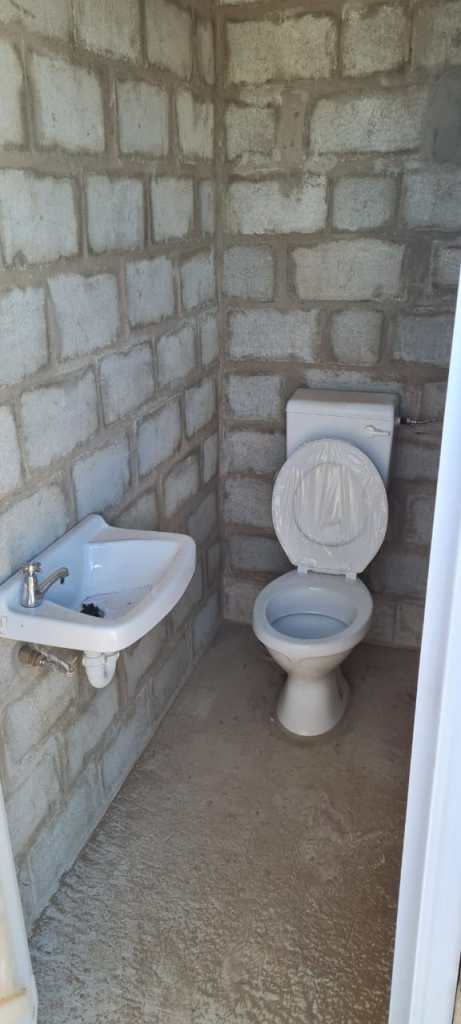

Toilet with inside washbasin

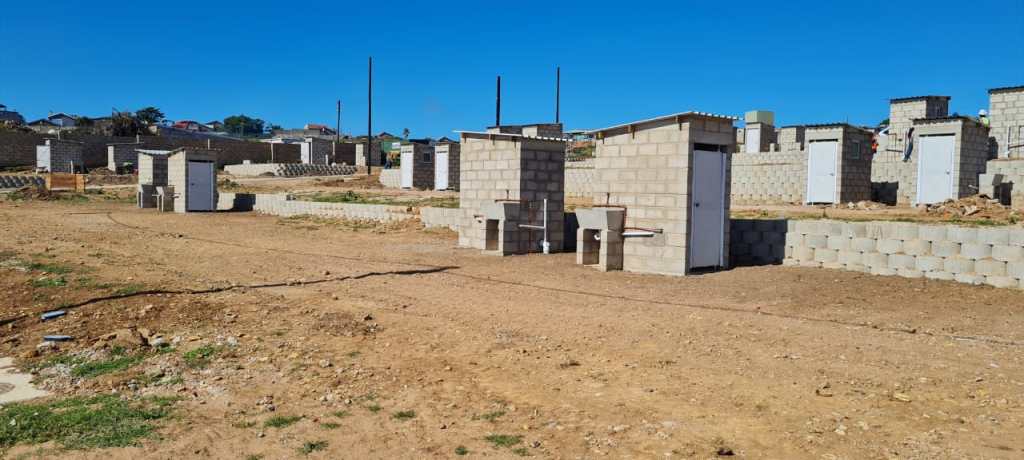

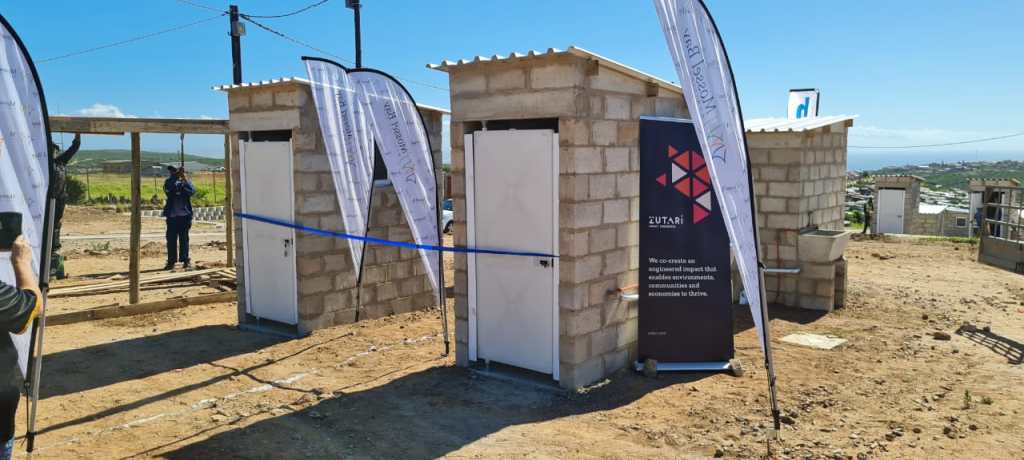

Completed toilet structures with outside wash trough. The doors of the structures are durable plastic doors made by Envirosan (known as the Envirodoor made from High-density polyethylene (HDPE))

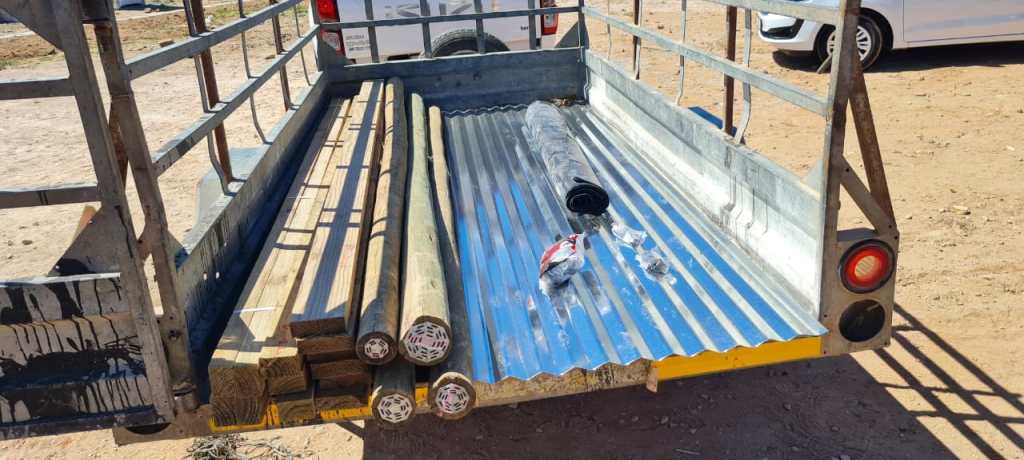

The Material Assistance Package provided to each beneficiary in the UISP to augmend their existing building materials.

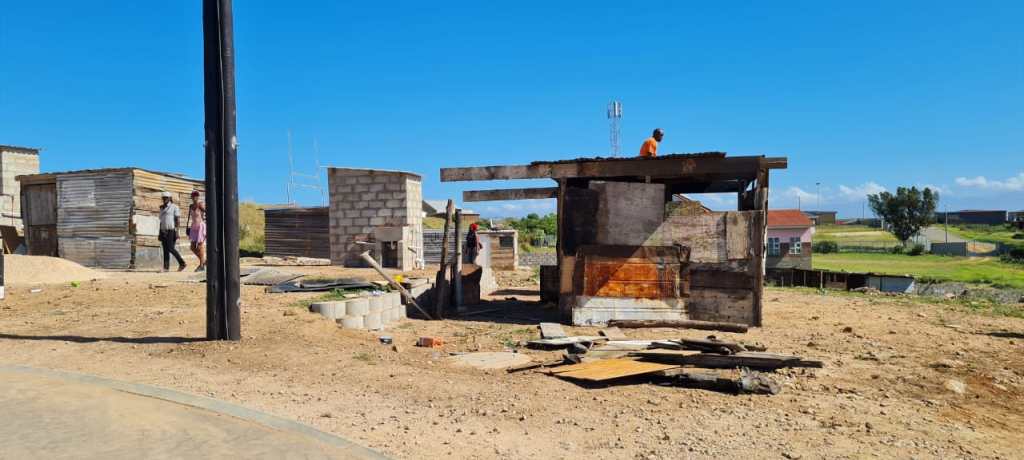

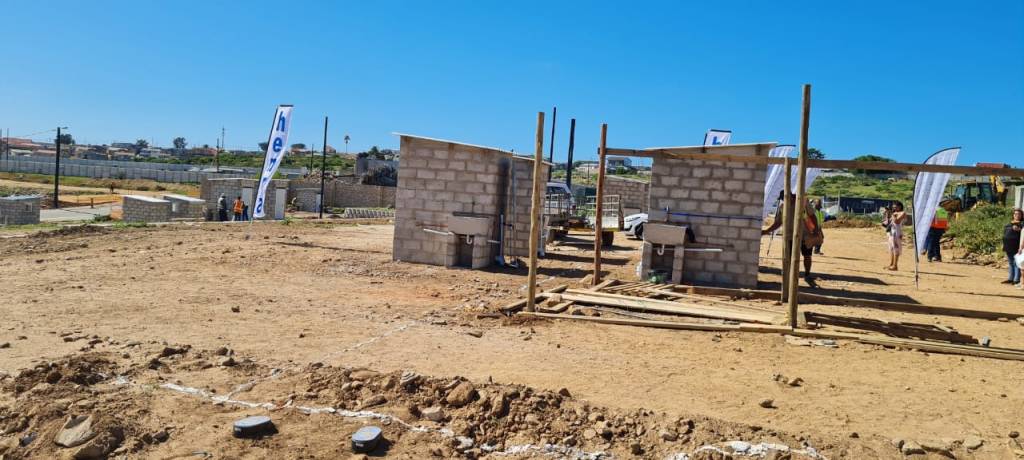

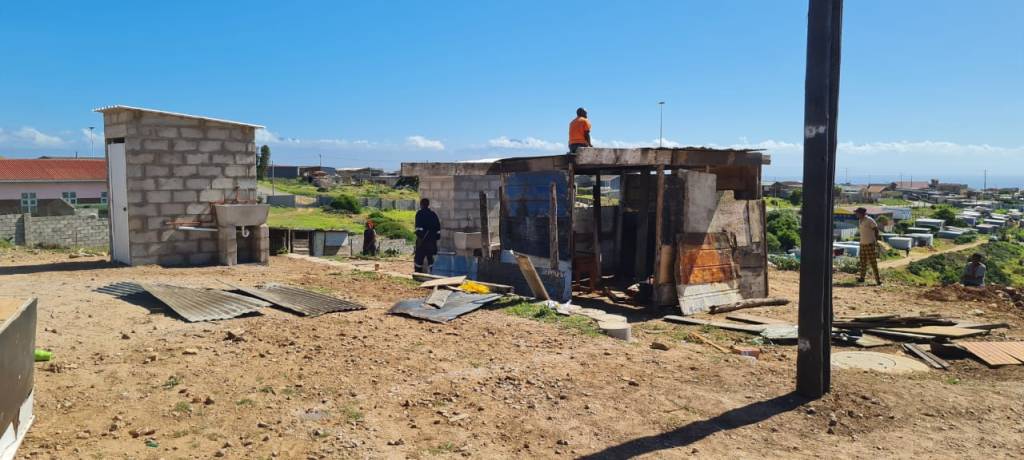

Construction of a new structure taking place. Beneficiaries are responsible to breakdown and construct their own structures.  The contractors assist by providing additional labour in cases where there are women or elderly.

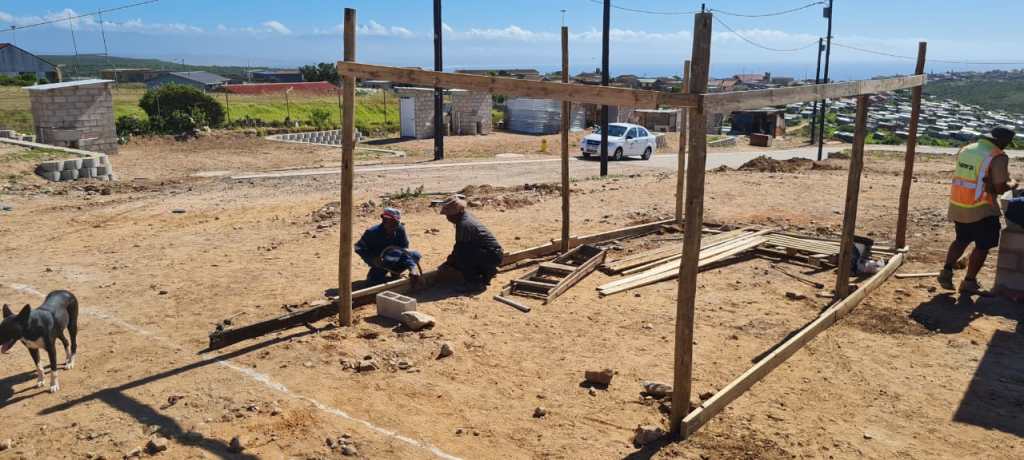

Construction of a new structure taking place

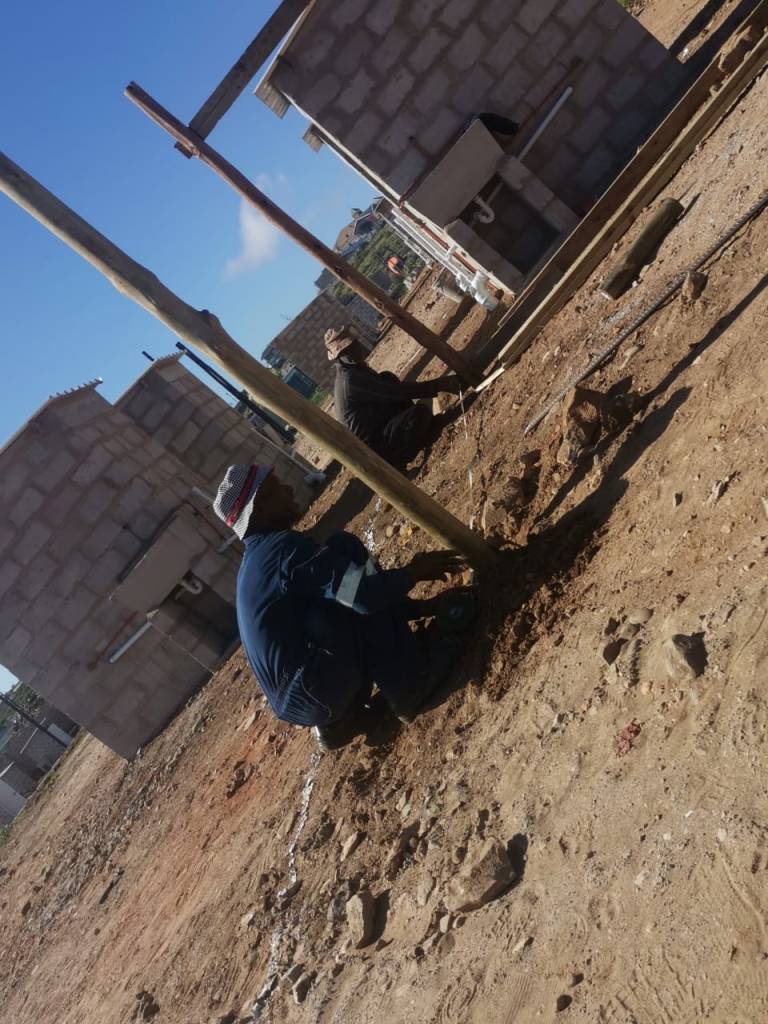

Beneficiaries working together to construct their new homes
Beneficiaries working together to construct their new homes
Construction of a new structure taking place
Construction of a new structure taking place
Construction of a new structure taking place
Construction of a new structure taking place

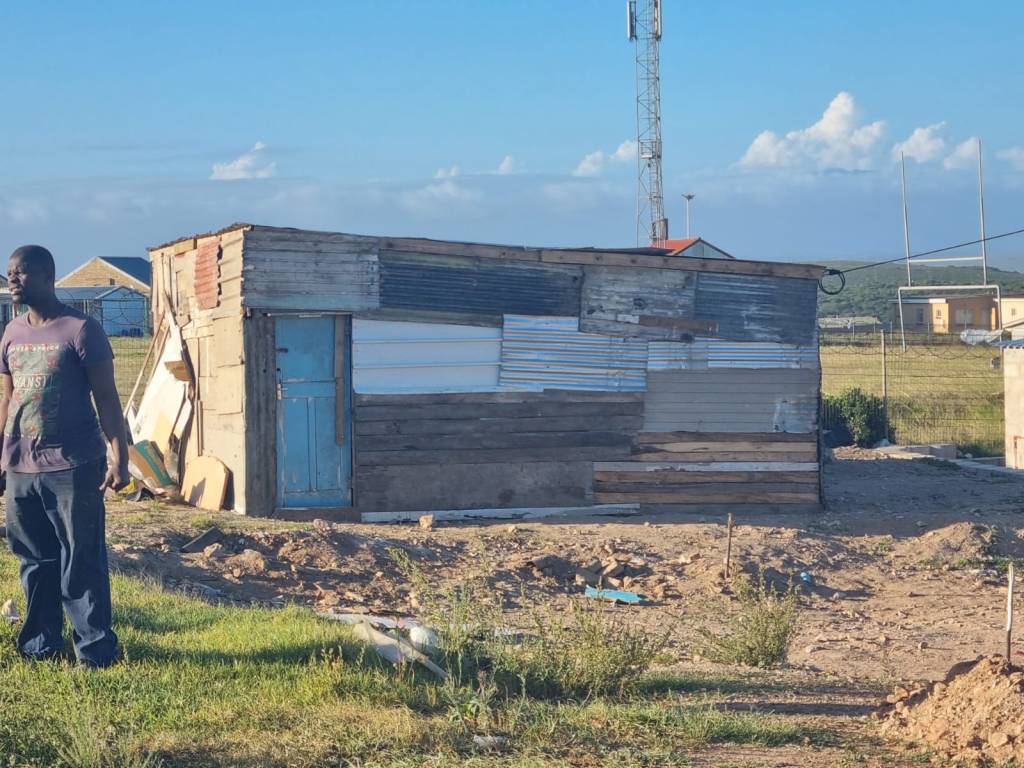

Newly built completed structures built by beneficiaries on the enhanced serviced sites

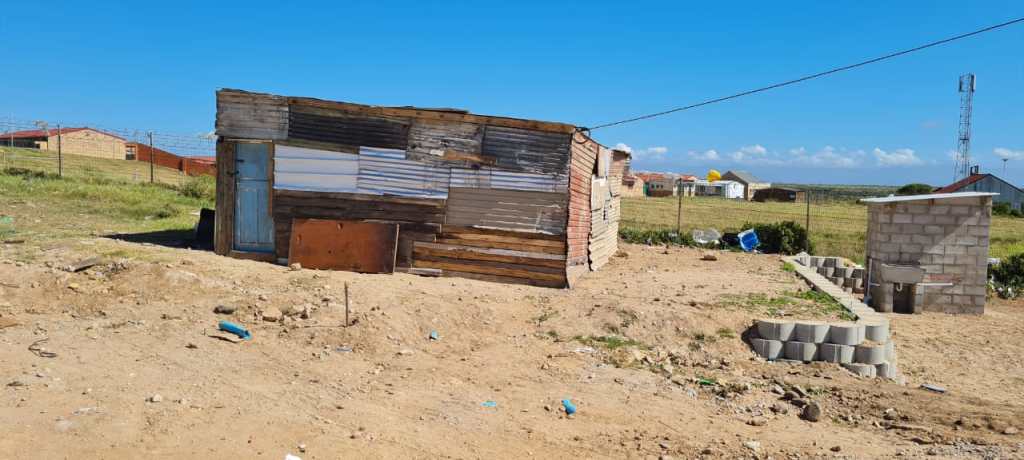

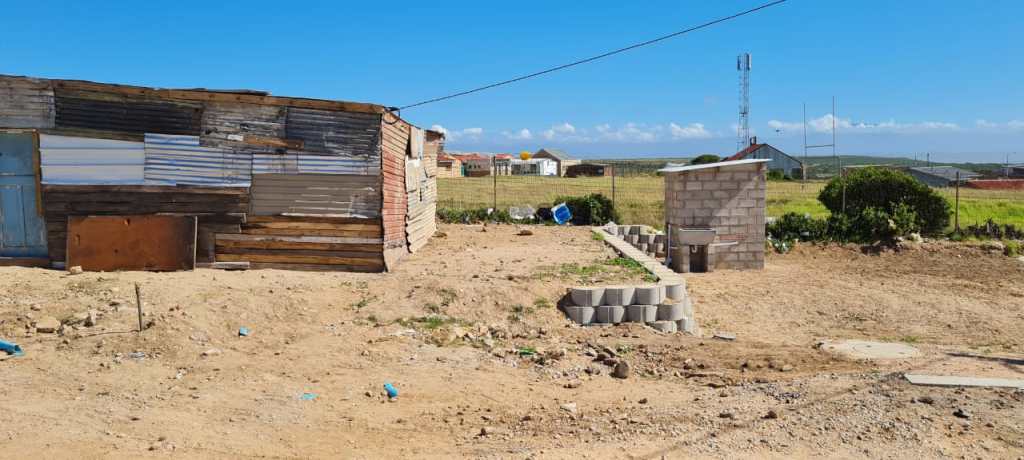

Newly built completed structures built by beneficiaries on the enhanced serviced sites. These beneficiaries have opted to leave the toilet structure as a separate “outside” structure
Newly built completed structure built by a beneficiary incorporating the toilet structure
Newly built completed structure built by a beneficiary incorporating the toilet structure
Newly built completed structure built by a beneficiary incorporating the toilet structure.  Electricity connection also already in place

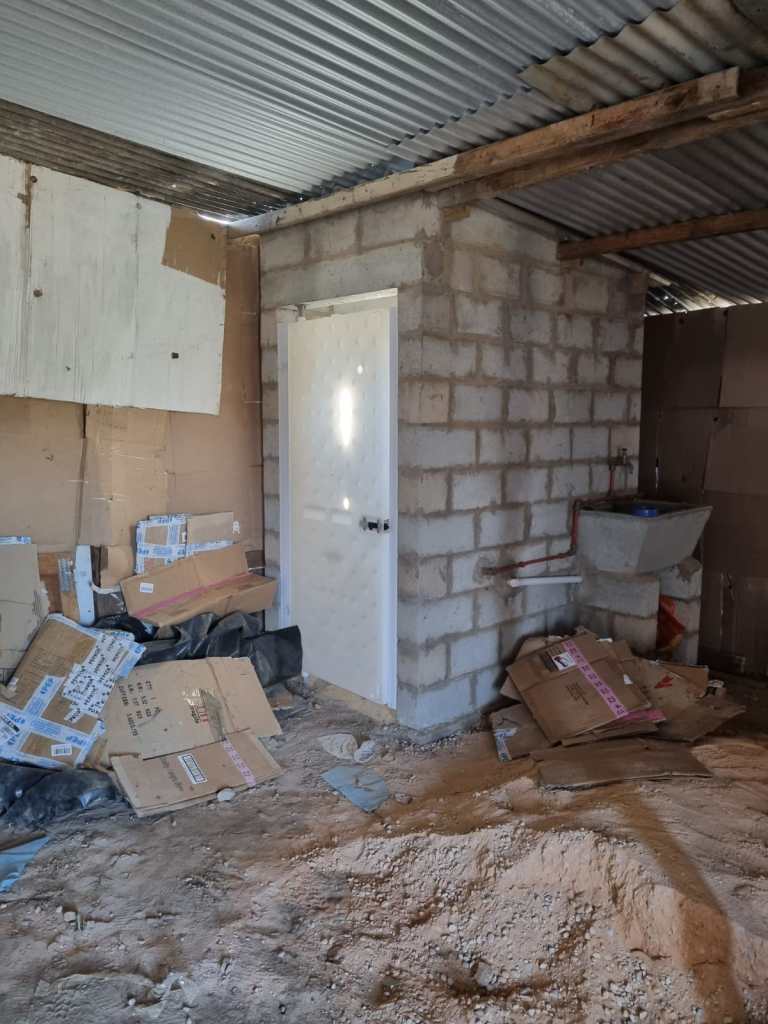

Inside of the structure where the toilet structure is incorporated into the structure to create an “inside” toilet. Running water inside one’s own home
Inside of a newly built completed structure
Ntsikelelo Sankata and his wife, the very happy recipients of an enhanced serviced site in the Transand Camp settlement
